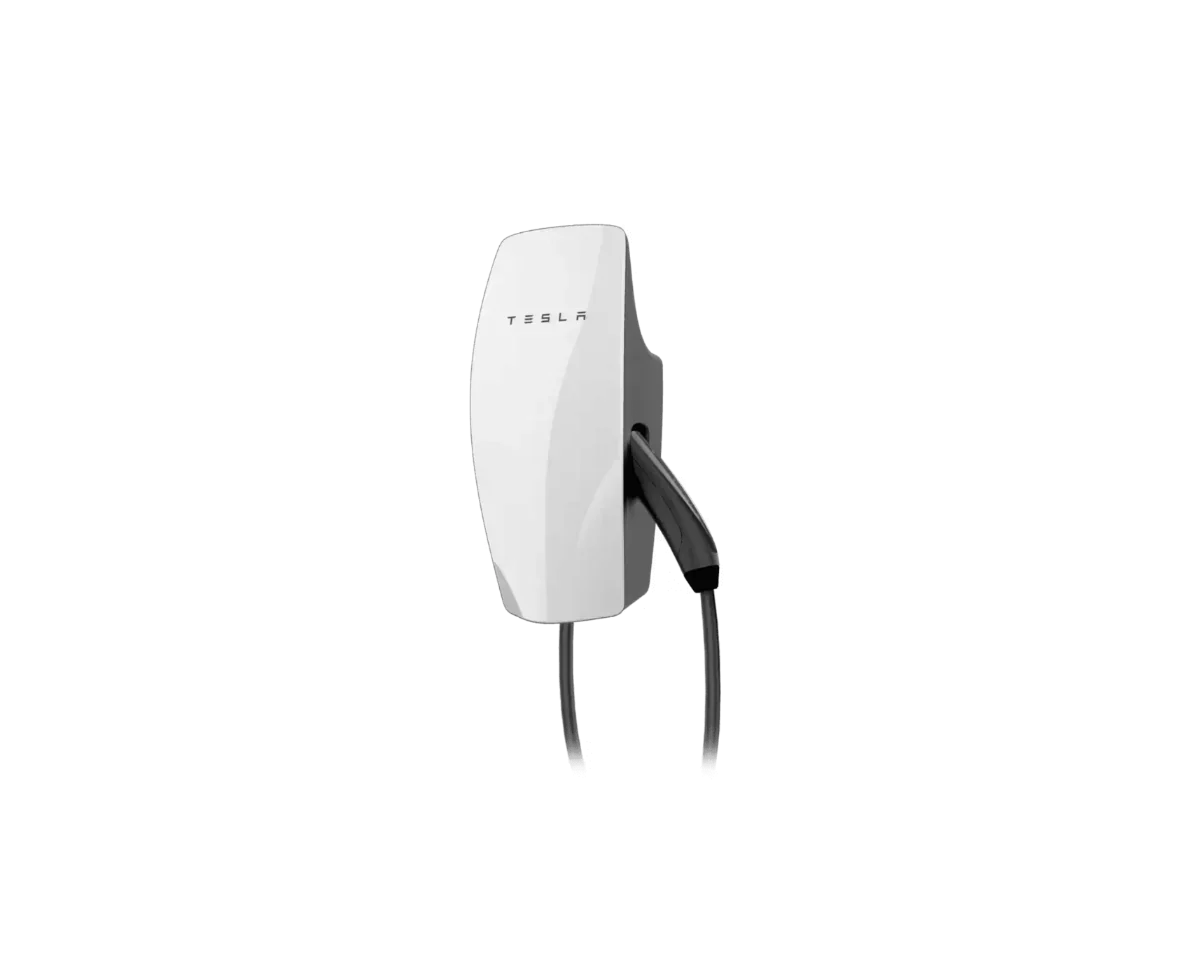

Tesla Wall Connector Gen 3 Review UK (2026)
Quick Verdict
The Tesla Wall Connector Gen 3 is one of the most popular home EV chargers in the UK for good reason. Fast charging, a long cable, seamless Tesla app integration, and compatibility with every UK EV make it a strong all-round choice for home installation.
Tesla Wall Connector Gen 3 | 7.4kW Official Tesla Home Charger
Specifications
| Specification | Detail |
|---|---|
| Power output | 7.4kW (single-phase) / 22kW (three-phase) |
| Connector | Type 2 tethered |
| Cable length | 7.3 metres |
| Dimensions | 353mm x 152mm x 124mm |
| Weight | 5.3 kg |
| Connectivity | Wi-Fi |
| IP rating | IP44 |
| Warranty | 4 years |
| OZEV eligible | No |
Build Quality and Design
The Gen 3 has a clean, slim profile in matte white that sits neatly on a wall without dominating the space. Tesla has put care into the design: it looks considered rather than purely functional, which matters when it is mounted at the front of a property.
The 7.3m tethered cable is one of the longest available on a home charger at this level. It reaches most driveways and garage layouts without needing extensions. The cable is flexible and easy to handle day to day.
The unit carries an IP44 weather rating, suitable for UK outdoor conditions including rain and general exposure. For a sheltered garage wall or covered installation point, it performs reliably.
Installation
The Gen 3 requires a 32A dedicated circuit, standard for any 7.4kW home charger. Any NICEIC or NAPIT-registered electrician can carry out the installation, and the unit is straightforward to mount and wire.
Your installer will add Type A RCD protection and a surge protection device at the consumer unit as part of a complete installation. The charger is designed for fixed wall mounting and suits both indoor and outdoor positions.
Note that the Tesla Wall Connector Gen 3 is not currently OZEV-approved, so it does not qualify for the UK EV Chargepoint Grant. If grant funding is important to your decision, speak to ON-EV and we can help you find the right solution.
Charging Speed
On a standard single-phase UK supply, the Gen 3 delivers 7.4kW, adding roughly 25 to 30 miles of range per hour. For most drivers that means a full charge overnight from whatever state the battery is in when they arrive home.
On three-phase supplies, the unit steps up to 22kW, one of the highest outputs available for a home AC charger. This makes it a strong option for properties with three-phase electricity and vehicles capable of accepting higher AC charging rates.
Charging speed is determined by your vehicle's onboard charger. The Gen 3 is built to supply whatever your car can accept, up to its rated maximum.
App and Smart Features
The Gen 3 connects to the Tesla app via Wi-Fi, giving you full visibility of charging sessions, energy usage, and scheduling from your phone. For Tesla vehicle owners, this integrates directly with the existing app used to manage the car, keeping everything in one place.
Scheduled charging lets you set off-peak windows to take advantage of cheaper overnight electricity rates. The charger also receives over-the-air firmware updates from Tesla, meaning improvements and new features arrive automatically without any engineer visit.
The unit supports power sharing across up to 16 Wall Connectors on a single circuit. This allows multiple chargers to balance the available current automatically, making it well suited to multi-vehicle households and small commercial properties.
Compatibility
Despite being a Tesla product, the UK Gen 3 uses a standard Type 2 connector and is fully compatible with any EV sold in the UK. Whether you drive a Tesla, a Volkswagen ID.4, a BMW iX, or any other electric vehicle, the Wall Connector will charge it.
This makes it a future-proof choice. If you change vehicles down the line, the charger works with whatever you replace it with.
Key Benefits
- 7.3m cable, one of the longest tethered cables available on a home charger
- 7.4kW on single-phase, 22kW on three-phase
- Full Tesla app integration for scheduling, monitoring and remote control
- Compatible with every Type 2 EV sold in the UK
- Power sharing across up to 16 units on a single circuit
- Over-the-air firmware updates
- Four-year warranty
- Suitable for indoor and outdoor installation
Things to Consider
- Not OZEV grant eligible
- No built-in RCD protection (added by installer at the consumer unit)
- Scheduling is manual rather than automatic dynamic tariff response
- No native solar diversion capability
Verdict
The Tesla Wall Connector Gen 3 is a well-built, high-performance home charger that covers the needs of the majority of UK EV drivers. The long cable, broad vehicle compatibility, and Tesla ecosystem integration make it a practical and reliable daily charging solution.
If you are considering the Gen 3 for your home, ON-EV can advise on suitability and handle the full installation. Get in touch to discuss your property and charging requirements.
Tesla Wall Connector Gen 3 | 7.4kW Official Tesla Home Charger
Frequently Asked Questions
Does the Tesla Wall Connector Gen 3 work with non-Tesla cars?
Yes. The UK version uses a standard Type 2 connector and is compatible with every EV currently sold in the UK.
What charging speed does it deliver?
7.4kW on a standard single-phase supply, and up to 22kW on a three-phase supply. Actual speed depends on your vehicle's onboard charger limit.
Is it eligible for the OZEV EV Chargepoint Grant?
No. The Tesla Wall Connector Gen 3 is not OZEV-approved. If you would like to use the grant, contact ON-EV and we will help you find an eligible charger that suits your needs.
Can it be used with off-peak electricity tariffs?
Yes. The built-in scheduler lets you set charging windows to run during cheaper off-peak periods.
How long is the charging cable?
7.3 metres, making it one of the longest tethered cables available on a home charger.
How many chargers can share a single circuit?
Up to 16 Tesla Wall Connectors can load-balance across one circuit automatically, with no separate controller required.
